Tekbox RF amplifiers

RF preamplifier

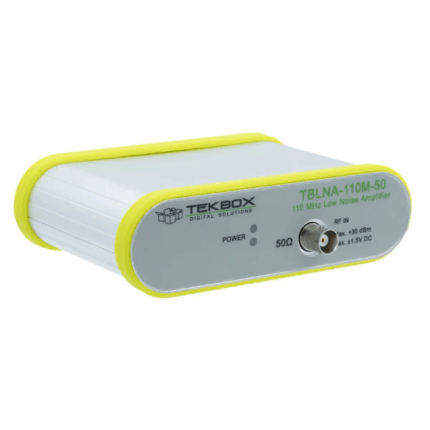

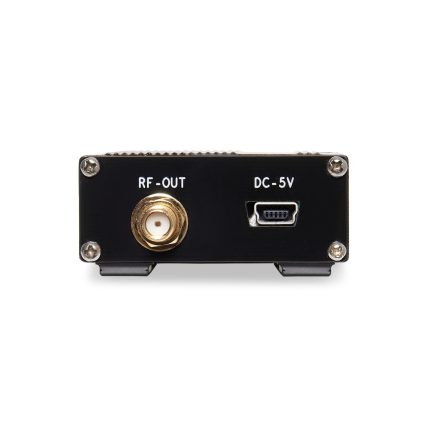

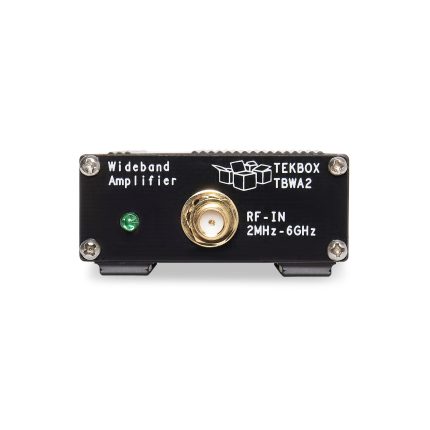

The models TBWA2 / 20dB and TBWA2 / 40dB are low-distortion preamps, tailored for use with near-field probes. These amplifiers produce significantly less non-linear distortion than the built-in pre-amplifier of the spectrum analyzer. They are connected between near-field probe and spectrum analyzer.

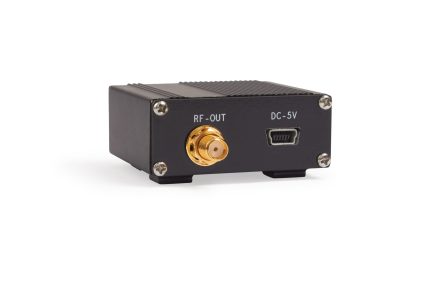

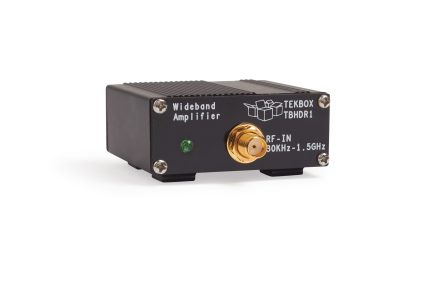

The new TBHDR1 is also a low-distortion preamps, but primarily for use with an artificial network (LISN) was developed. Specifically, while there is a risk of very high peaks in measurements with the AC LISN, there are standards with the DC-LISN (z. B. CISPR 25 Class 5, in the upper frequency range) at which the limit values are close to the noise floor of common spectrum analyzers. In this case you have to use a preamplifier. The lower limit frequency of the TBHDR1 is less than 30 kHz, while the lower limit frequency of TBWA2 amplifier is about 2 MHz.

 preamplifier TBWA2 / 20dB TBWA2 / 40dB TBHDR1
Type preamplifier preamplifier preamplifier
frequency range 1.5 GHz MHz..6 2.5 GHz MHz..6 30 kHz..1,5 GHz (up to 6 GHz specified)
Gain typ. 20 dB 40 dB 24 dB
Input power max. +10 dBm -10 dBm +10 dBm
Output power max. +20 dBm (100 mW) +20 dBm (100 mW) +19 dBm (80 mW)
IP3 at the output +35 dBm +35 dBm +38 dBm
Noise figure typ. 4.5 dB 4.5 dB 2.7 dB
Distinguishing features High linearity, less nonlinear distortions than with internal preamplifier of the Spectrum Analyzers
typical applications Preamplifier for near-field probes Preamplifier for near-field probes Preamplifier for measuring line-conducted interference, particularly CISPR25

RF driver amplifier

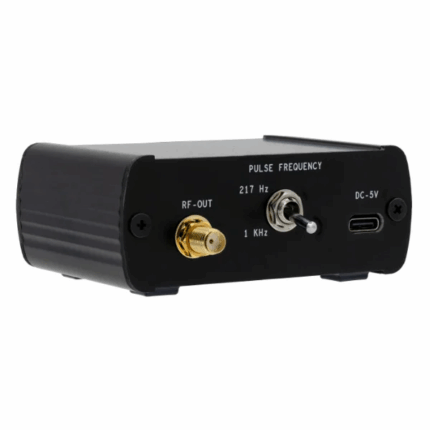

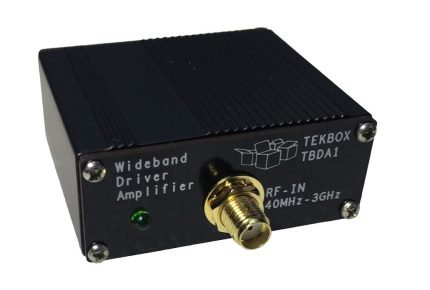

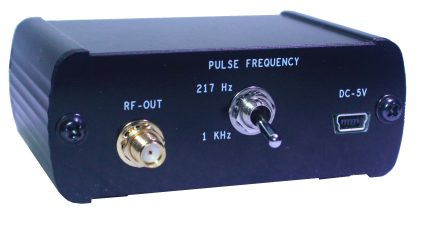

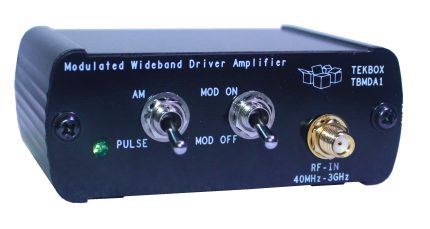

TBDA1 / 14dB and TBDA1 / 28dB and the modular TBMDA1 are called. Driver amplifier to drive power amplifiers. The TBMDA1 is designed to be controlled by the tracking generator of the spectrum analyzer. It offers the possibility 1 kHz AM or PM signals to generate and PM mode in addition, a 217 Hz signal with 12.5% duty cycle to simulate the handshake signal in the GSM mobile network. Also ideal for users who, although they have a spectrum analyzer, but no RF signal generator. The TBDA versions without its own modulation opportunity to bring the same output power and are designed for the control by RF signal generator.

 driver amplifier TBMDA1 TBDA1 / 14dB TBDA1 / 28dB
Type Driver amplifier (modulated) Driver amplifier (not modulated) Driver amplifier (not modulated)
frequency range 40 GHz MHz..3 40 GHz MHz..3 40 GHz MHz..3
Gain typ. 20 dB 14 dB 28 dB
Input power max. +9 dBm +20 dBm +6 dBm
Output power max. +22 dBm (150 mW) +22 dBm (150 mW) +22 dBm (150 mW)
IP3 at the output +40 dBm +40 dBm +40 dBm
Noise figure typ. 4 dB 4 dB 4 dB
Distinguishing features Control typically from TG output of the spectrum analyzer Control via RF generator Control via RF generator
typical applications Immunity tests with TEM cells Immunity tests with TEM cells Immunity tests with TEM cells

RF power amplifier

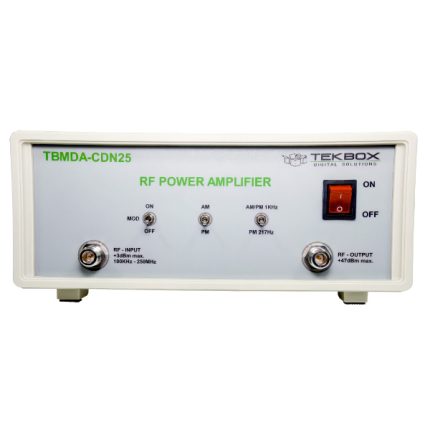

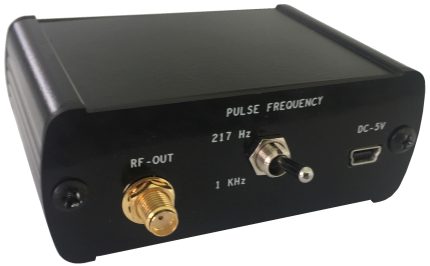

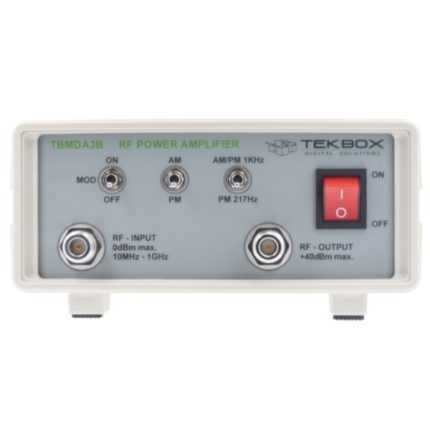

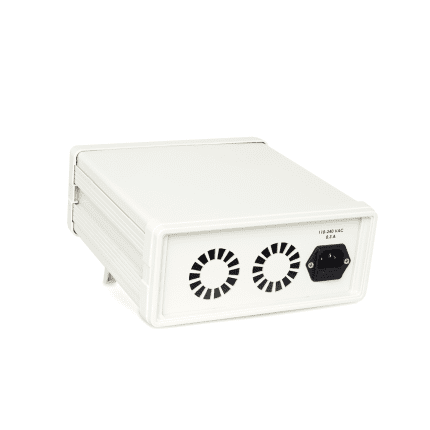

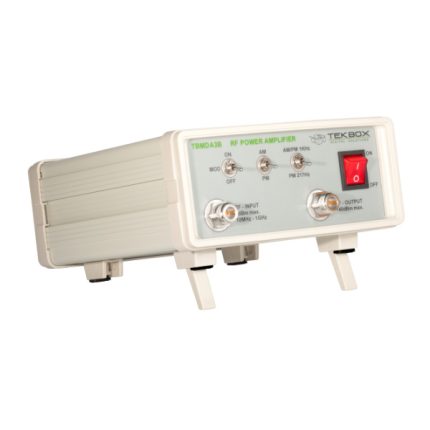

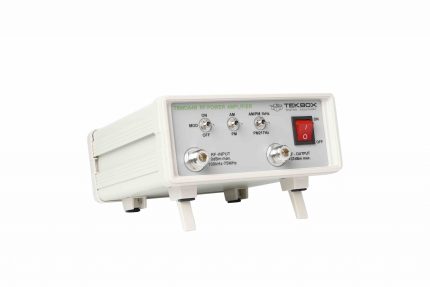

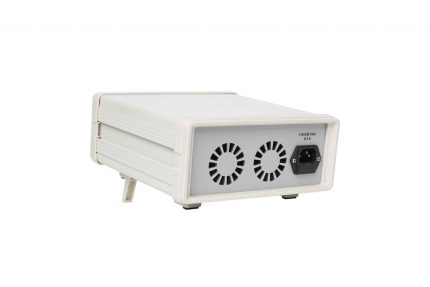

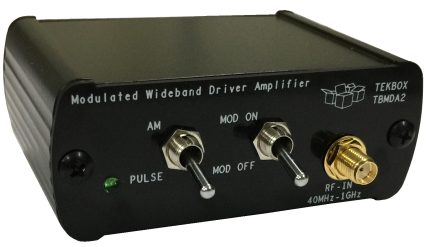

The models TBMDA2 , TBMDA3 and TBMDA4 are modulated power amplifier for immunity tests. Like the TBMDA1, the amplifier for controlling via tracking generator are designed. Per switch the modulation modes can 1 kHz AM or PM signal are activated, and in the PM mode, a 217 Hz signal at 12.5% duty cycle can be generated in addition. The models of the TBLPA series are highly linear power amplifier for universal use in RF technology.

 power amplifier TBMDA2
(Part No .: 152084)		 TBMDA3
 (Part No .: 152085)		 TBMDA4
(Part No .: 152086)		 TBLPA1
(Part No .: 152087)		 TBLPA2
(Part No .: 152088)
Type power amplifier power amplifier power amplifier power amplifier power amplifier
Distinguishing features modulated modulated modulated highly linear highly linear
frequency range 40 GHz MHz..1 10 GHz MHz..1 100 MHz kHz..50 50 GHz MHz..1 8 MHz..300 MHz
Input power max. +3 dBm +3 dBm +3 dBm +3 dBm +3 dBm
Output power max. +27 dBm (0.5 W) +37 dBm (5 W) +37 dBm (5 W) +30 dBm (1 W) +30 dBm (1 W)
Accessories incl. … as TBMDA1 + 1x 20 dB attenuator 2 W N-1x + 10 dB attenuator SMA 30 dB / 10 W attenuator, 2x coaxial cable (RG-223), N-male to male N connector 30 dB / 10 W attenuator, 2x coaxial cable (RG-223), N-male to male N connector 20 dB / 10 W attenuator, 2x coaxial cable (RG-223), N-male to male N connector 20 dB / 10 W attenuator, 2x coaxial cable (RG-223), N-male to male N connector
care USB (+5 V) 230 VAC 230 VAC 230 VAC 230 VAC
typical applications immunity tests immunity tests immunity tests universal application universal application

RF vahvistimet

Part
Number		 Frequency
Range
(MHz)		 Gain
(dB)
typ.		 Noise
Figure
(dB)
typ.		 Output
P1dB
(dBm)
typ.		 Output
IP3
(dBm)
typ.		 Maximum
Input
Power
(dBm)		 Modulation
Capability		 Supply
Voltage
(V)
nom.		 Supply
Current
(mA)
typ.		 Application
TBDA1/14 40 – 3000 14 4 22 40 20 No 5 115 Driver Amplifier
TBDA1/28 40 – 3000 28 4 22 40 6 No 5 215 Driver Amplifier
TBHDR1 0.03 – 1500 22 2.7 19 37 10 No 5 100 Pre-Amplifier
Rigol PA1011 0 – 1 1 – – – 10V No 12 4000 Pre-Amplifier
Siglent SPA1010 0 – 1 1 – – – 10V No 12 4000 Pre-Amplifier
TBMDA1 20 – 3000 20 4 22 40 9 Yes 5 235 RF Immunity Testing
TBMDA2 10 – 1500 40 – 26 – -8 Yes 5 700 RF Immunity Testing
TBMDA3 10 – 1000 42 9 36 – 3 Yes 110 – 240Vac (P = 20W) RF Immunity Testing
TBMDA4 0.05 – 70 40 9 36 – 3 Yes 110 – 240Vac (P = 20W) RF Immunity Testing
TBLPA1 10 – 10000 36 2,5 38 – 5 No 110 – 240Vac (P = 15W) Power amplifier
TBWA2/20dB 1.5 – 6000 20 4.5 20 35 10 No 5 110 General Purpose
TBWA2/40dB 2.5 – 6000 40 4.5 20 35 -10 No 5 210 General Purpose
